Product Description

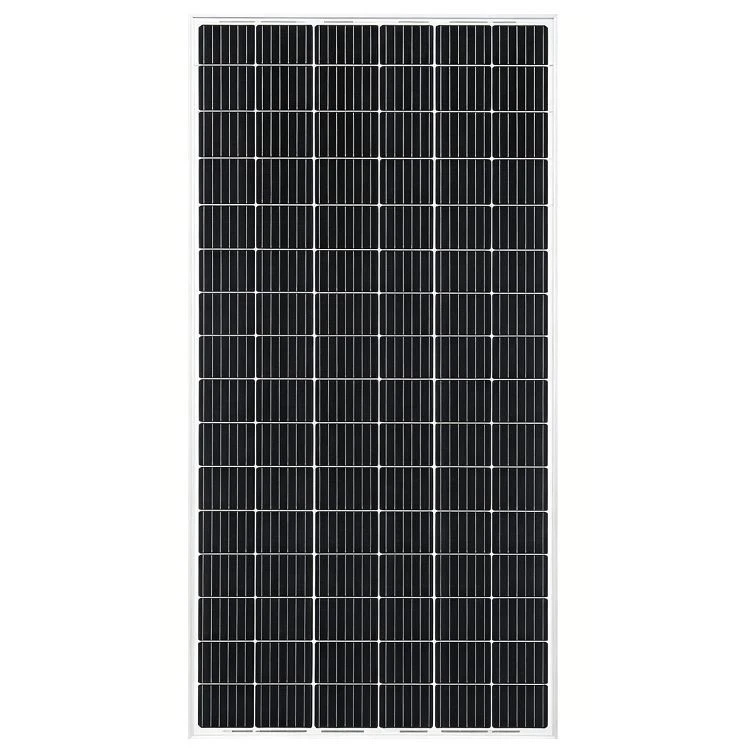

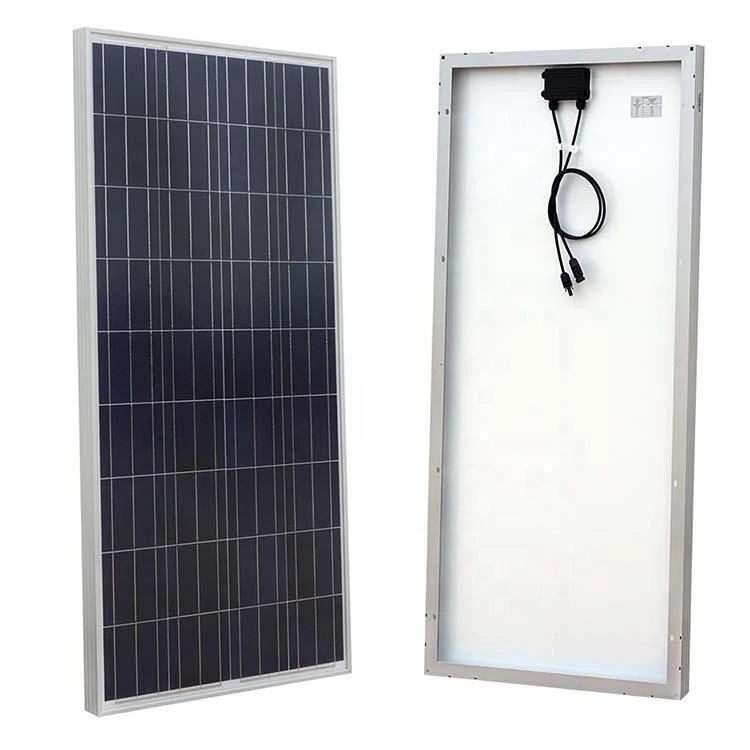

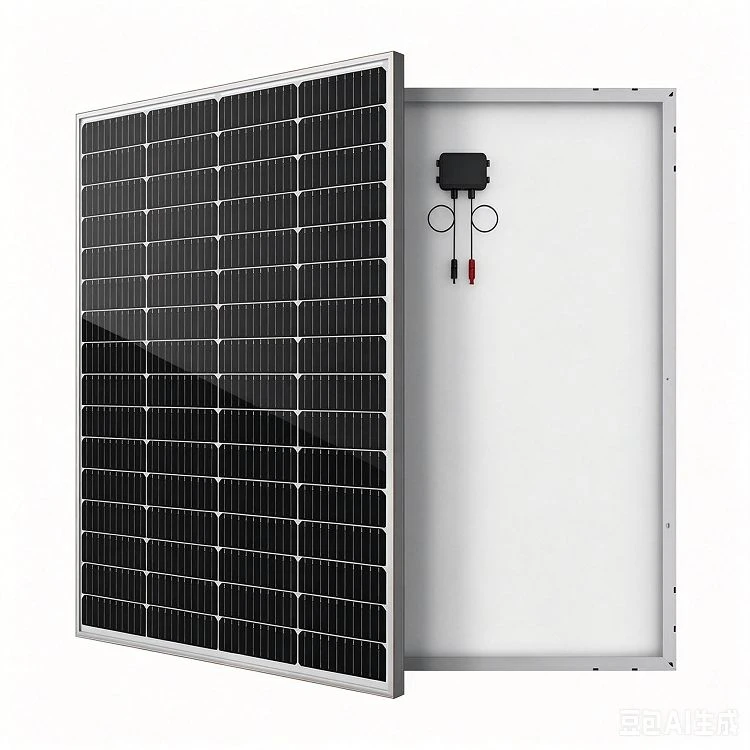

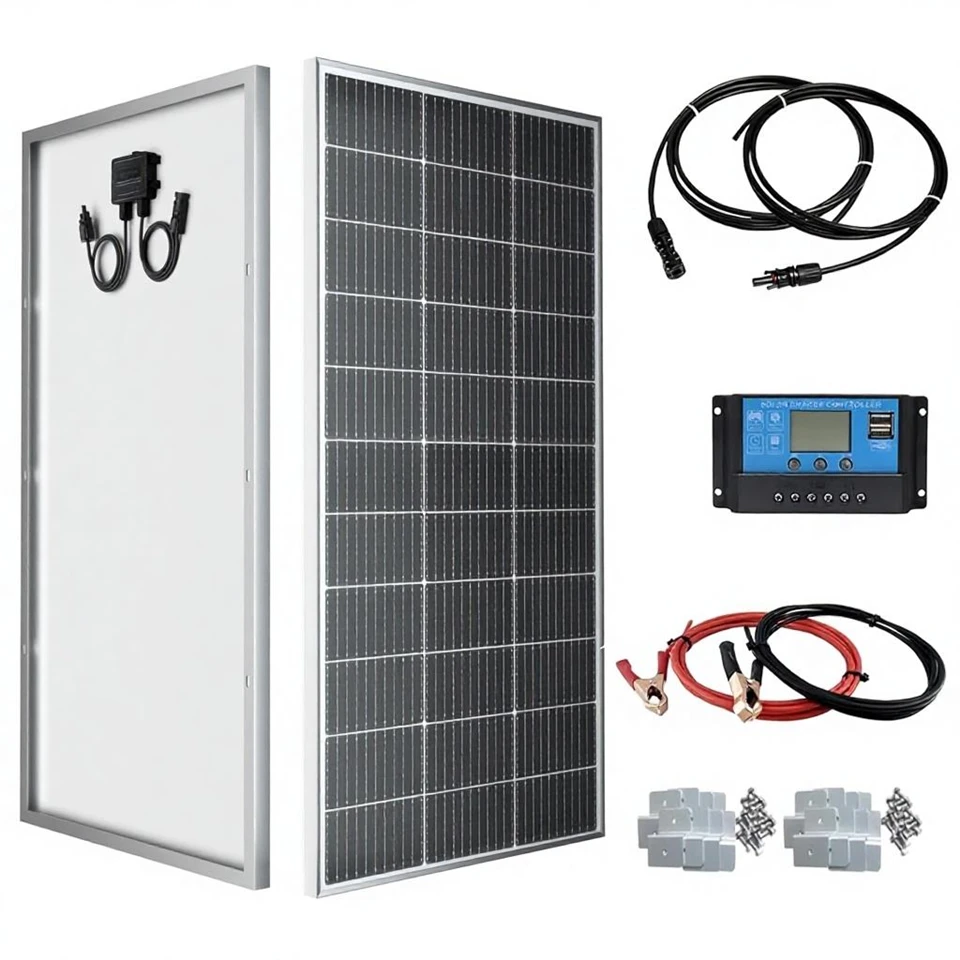

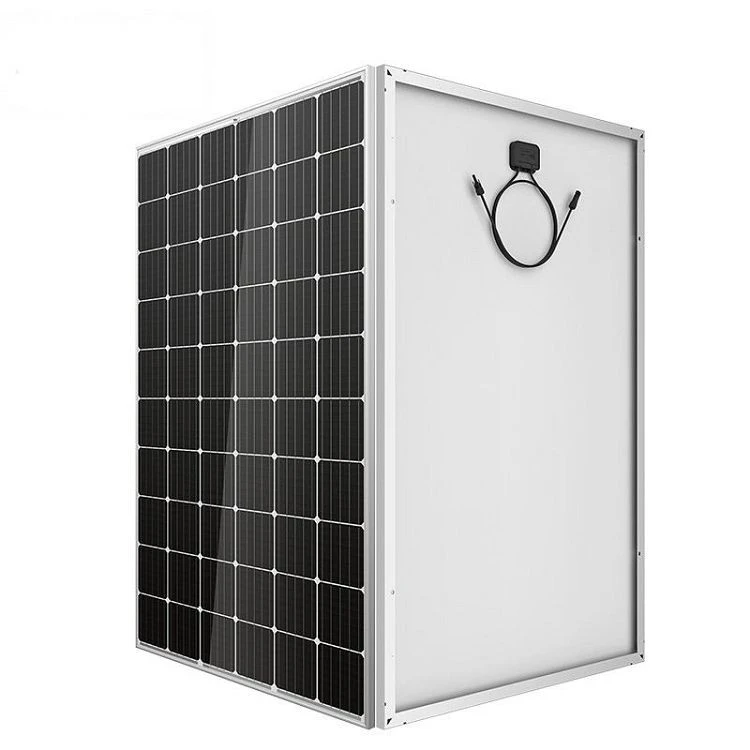

Physical resilience is just as crucial as electrical output when supplying international B2B projects. This 12 volt 150 watt solar panel is securely encased within a rugged aluminum frame and protected by high-transparency tempered glass, ensuring maximum light transmission while effectively resisting heavy wind and mechanical stress. Impressively, this 150 watt 12V solar panel maintains a highly compact physical footprint of just 680mm x 510mm x 30mm. The electrical components are fully safeguarded by an IP67-rated junction box, effectively preventing dust and moisture ingress during extreme tropical monsoons. Furthermore, it comes pre-equipped with industry-standard MC4 compatible connectors, allowing local system integrators to execute rapid, error-free wiring on site.
|
Module |
SPxxxM-36 xxx = Peak Power Watts |
||||
|
Peak Power Watts (Pmax/W) |
160 |
165 |
170 |
175 |
180 |
|
Power Output Tolerance (W) |
0~+5 |
||||
|
Maximum Power Voltage (Vmp/V) |
18.52 |
18.93 |
19.35 |
19.76 |
20.18 |
|
Maximum Power Current (Imp/A) |
8.64 |
8.71 |
8.79 |
8.85 |
8.92 |
|
Open Circuit Voltage (Voc/V) |
22.81 |
23.02 |
23.23 |
23.44 |
23.64 |
|
Short Circuit Current (Isc/A) |
9.28 |
9.41 |
9.47 |
9.51 |
9.59 |
|
Module Efficiency (%) |
16.14 |
16.64 |
17.14 |
17.65 |
18.15 |
|
Module |
SPxxxM-36 xxx = Peak Power Watts |
||||
|
Module |
150 |
155 |
160 |
165 |
170 |
|
Peak Power Watts (Pmax/W) |
150 |
155 |
160 |
165 |
170 |
|
Power Output Tolerance (W) |
0~+5 |
||||
|
Maximum Power Voltage (Vmp/V) |
17.49 |
17.9 |
18.32 |
18.74 |
19.15 |
|
Maximum Power Current (Imp/A) |
8.58 |
8.66 |
8.73 |
8.8 |
8.88 |
|
Open Circuit Voltage (Voc/V) |
22.48 |
22.69 |
22.9 |
23.1 |
23.31 |
|
Short Circuit Current (Isc/A) |
9.22 |
9.27 |
9.31 |
9.35 |
9.39 |
|
Module Efficiency (%) |
15.13 |
15.63 |
16.14 |
16.64 |
17.14 |
For global wholesale distributors, procurement safety and brand scalability are top priorities. This 12 volt 150 watt solar panel is fully backed by internationally recognized CE, TUV, and ROHS certifications, guaranteeing strict compliance with global electrical safety standards. Whether you are fulfilling government rural electrification tenders or expanding your local off-grid retail catalog, this 12V 150W monocrystalline solar panel offers full OEM customization support. Equip your commercial clients with industrial-grade, rigid solar technology built for long-term reliability.
